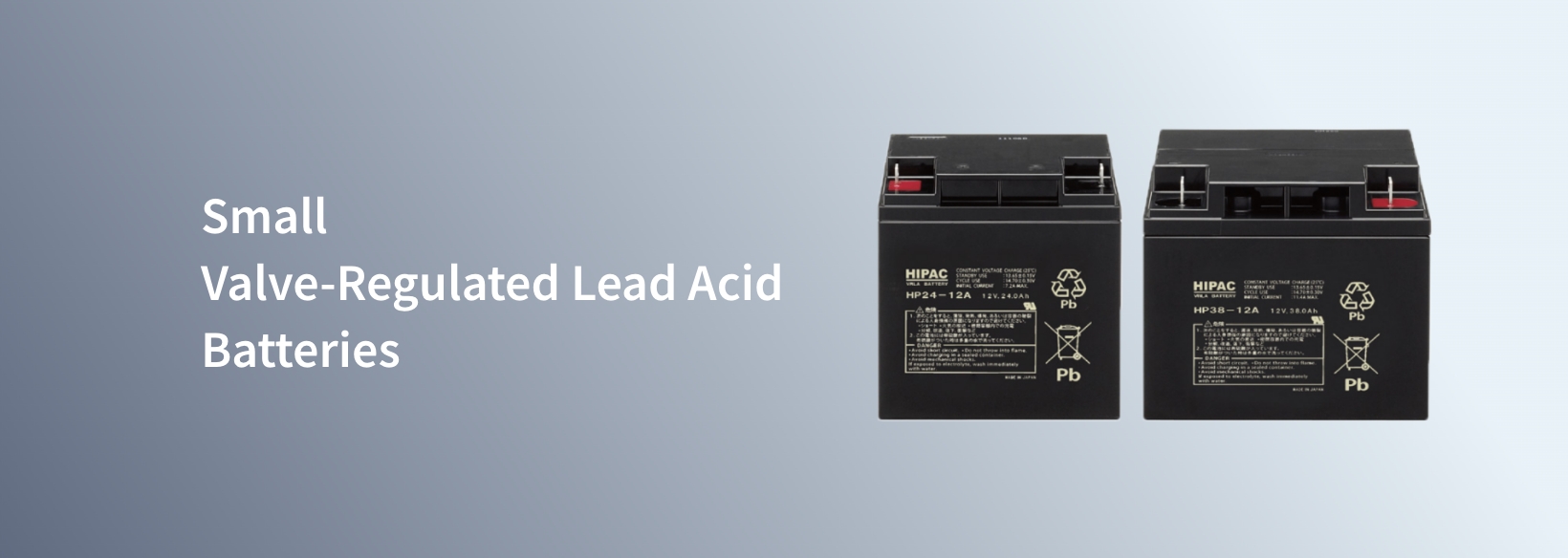

Compact and lightweight lead-acid batteries that require no watering and are suitable for a wide range of applications, including UPS backup power systems.

Featuring a compact design that enables economical equipment design. Usable not only for standby applications but also for cycle use.

Features

Compact design, enabling economical equipment design.

Main Applications

• CATV
• UPS
• Security and disaster prevention systems
• Solar power systems
• Lighting equipment
• Toys

Battery Specifications

			Battery model
			HP15-12A (12P150)	HP24-12A (12P240A)	HP38-12A (12P380)	HP65-12A (12P650)
Nominal voltage		V	12	12	12	12
Capacity（25℃）	20HR(0.05C) 1.75V/cell	Ah	15	24	38	65
	10HR(0.1C) 1.75V/cell		14	22	35	60
	5HR(0.17C) 1.75V/cell		13	20	32	55
	1HR(0.6C) 1.60V/cell		9	14	23	39
	1C 1.60V/cell		7.5	12	19	32
Dimensions	Overall height	mm	167	175	170	175
	Case height		167	175	170	175
	Length		181	166	197	350
	Width		76	125	165	166
Weight:		approx. kg	6.1	9.4	15	25
Flame retardancy of container material		–	UL 94V-0
Internal resistance（25℃）		approx. mΩ	15	10	8	6
Maximum discharge current (5 seconds)		A	255	360	400	500
Constant voltage charging	Standby use voltage（25℃）	V	13.65±0.15 (Temperature compensation coefficient: −20 mV/°C)
	Cycle use voltage（25℃）	V	14.70±0.30 (Temperature compensation coefficient: −30 mV/°C)
	Maximum charging current	A	4.5	7.2	11	19
Operating temperature range	Charging	℃	0～40
	Discharging	℃	-15～50
	Storage	℃	-15～40 (For storage, keep at 30°C or lower whenever possible.)		-15～40
Certified battery equipment		–	◯
UL certification		–	◯
